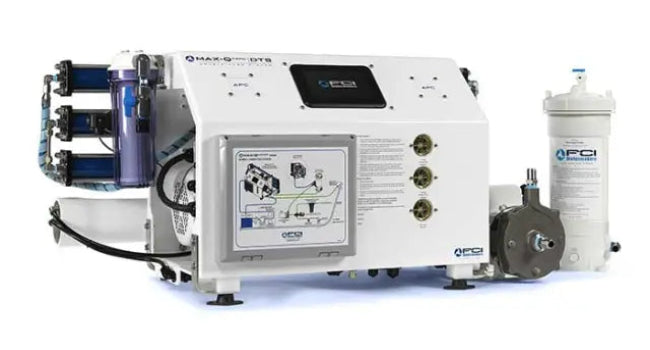

FCI MaxQ+ APC/DTS Double-Pass Framed

The Max-Q+APC/DTS is the Flagship of our Max-Q Series, containing 3 modes of operation: Seawater Single-pass, Spot-free Double-pass, and Spot-free Dockside Municipal water treatment, all in one compact system.

MaxQ+ APC/DTS Double-pass Framed components can be installed to fit your given space without sacrificing performance. It is controlled by an exclusive marine certified touch screen monitor and is specified with NEMA 4X rated enclosures and valves, which are corrosion resistant, and protected against directed water intrusion.

Key Features:

• Max-Q+APC and DTS+ in one all-inclusive system
• The only true, one-touch fully automatic combo unit on the market
• Fully automated, self-adjusting watermaker
• The industry's only Marine Certified HMI/PLC Touch Screen V4 Control System
• Exclusive NEMA 4X rated enclosures and valves for safety and protection in harsh environments
• 8-point Vibration Isolation for exceptionally quiet operation

Typical Sea Water Conditions:

• Temperature: 77º F / 25º C
• TDS: 32,000 Seawater | 500 Municipal/DTS
• Pressure: 825 PSI Seawater | 60 PSI Municipal/DTS

Specifications:

• Production (GPD): 1,200 - 2,000
• Power (KW): 2.24 kW
• Voltage (VAC): 120 / 208-240 / 380 / 480

IMPORTANT ORDER INFORMATION:

This item is NOT CURRENTLY IN STOCK and will be built/sourced to order.

Shipping costs will be calculated and billed separately based on actual package dimensions and destination. We will send you an additional invoice for associated freight costs before shipment of item. Your order will be processed and shipped once both the item cost and shipping invoice have been paid in full.
