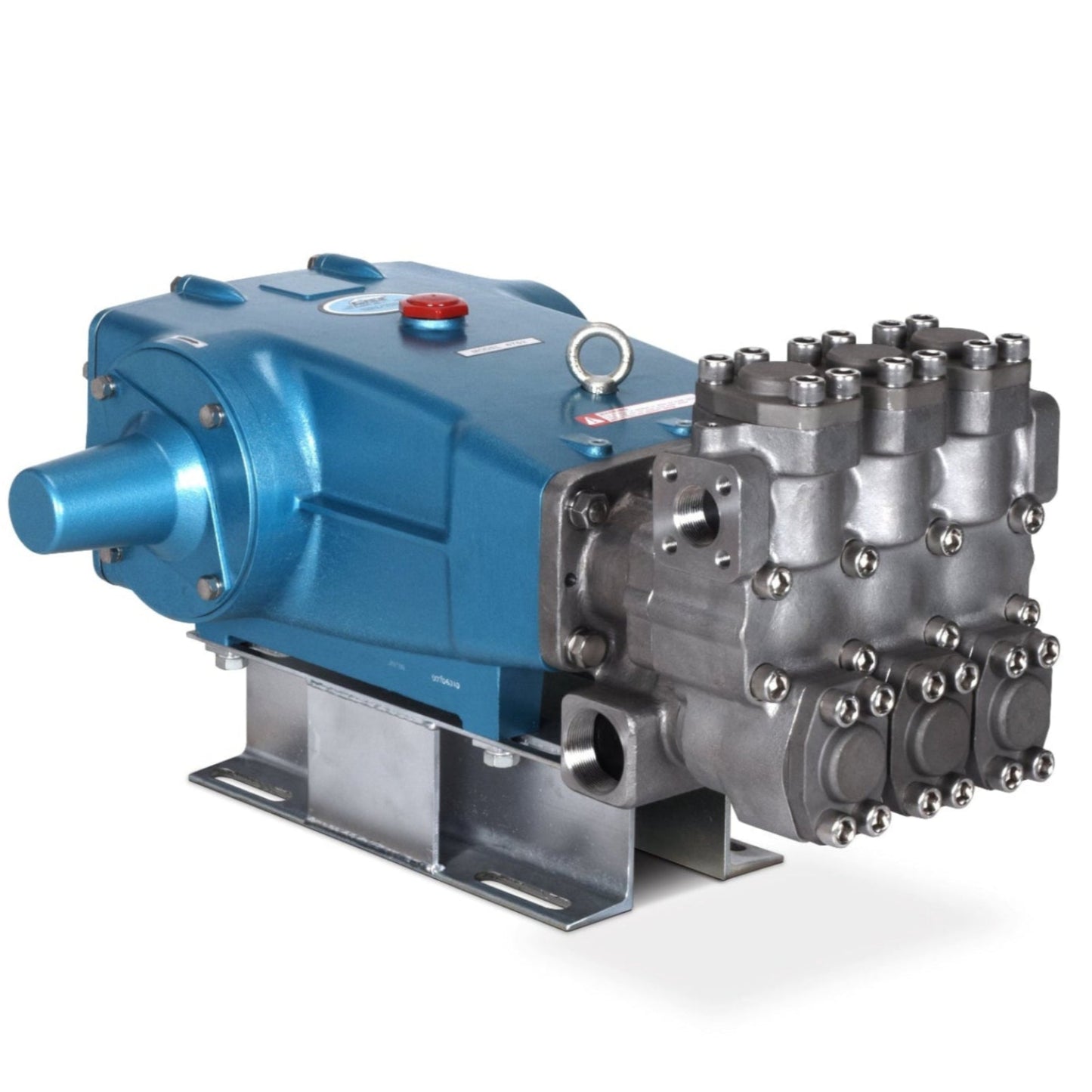

Cat Pumps Model 6761 Triplex Plunger Pump

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Technical Specifications

• Max Flow: 60 gpm / 227.1 lpm
• Max Pressure: 1200 PSI
• Inlet Port Size: 2" NPT(F)
• Discharge Port Size: 1 1/4" NPT(F)
• RPM: 520
• Drive Type: Belt
• Material: 316 Stainless Steel

Ideal for high-pressure applications requiring reliable, consistent flow rates. The 316 stainless steel construction ensures durability and corrosion resistance in demanding industrial environments.

IMPORTANT ORDER INFORMATION:

This item is NOT CURRENTLY IN STOCK and will be built/sourced to order.

Shipping costs will be calculated and billed separately based on actual package dimensions and destination. We will send you an additional invoice for associated freight costs before shipment of item. Your order will be processed and shipped once both the item cost and shipping invoice have been paid in full.
