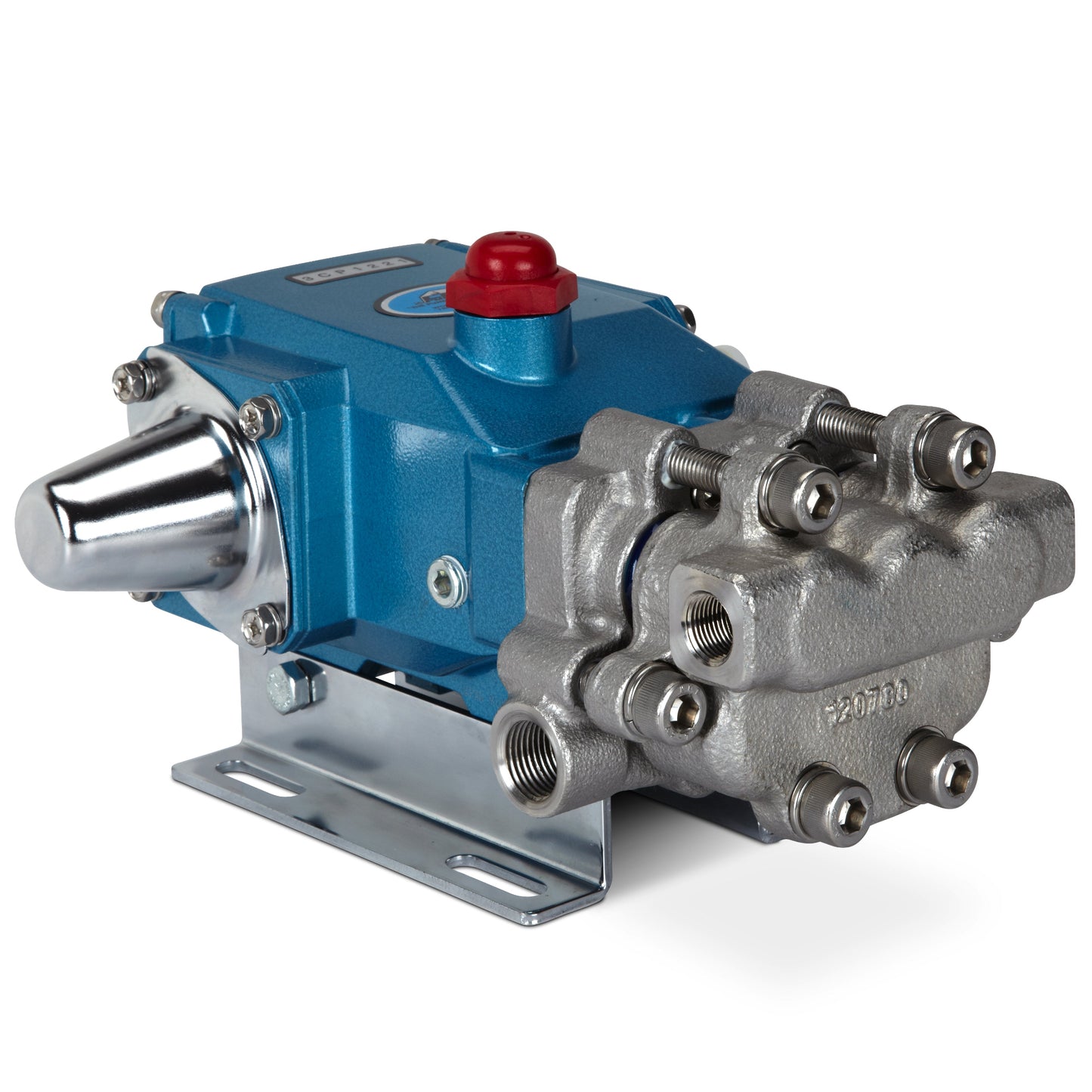

CAT PUMPS Model 3CP1241 Triplex Plunger Pump

Mid-Range High-Pressure Triplex Plunger Pump

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

The 1725 RPM permits multiple drive options, including direct drive with a bell housing and flexible coupling, clutch or belt drive.

Technical Specifications

• Max Flow: 3.6 gpm / 13.6 lpm
• Max Pressure: 2000 PSI
• Inlet Port Size: 1/2" NPT(F)
• Discharge Port Size: 3/8" NPT(F)
• RPM: 1725
• Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
• Material: 316 Stainless Steel

Ideal for applications requiring balanced flow and high-pressure delivery with versatile mounting and drive configurations.

"IMPORTANT ORDER INFORMATION:

This item is NOT CURRENTLY IN STOCK and will be built/sourced to order.

Shipping costs are calculated at checkout based on package dimensions and destination. Your order will be processed and shipped once the item is ready for delivery."
