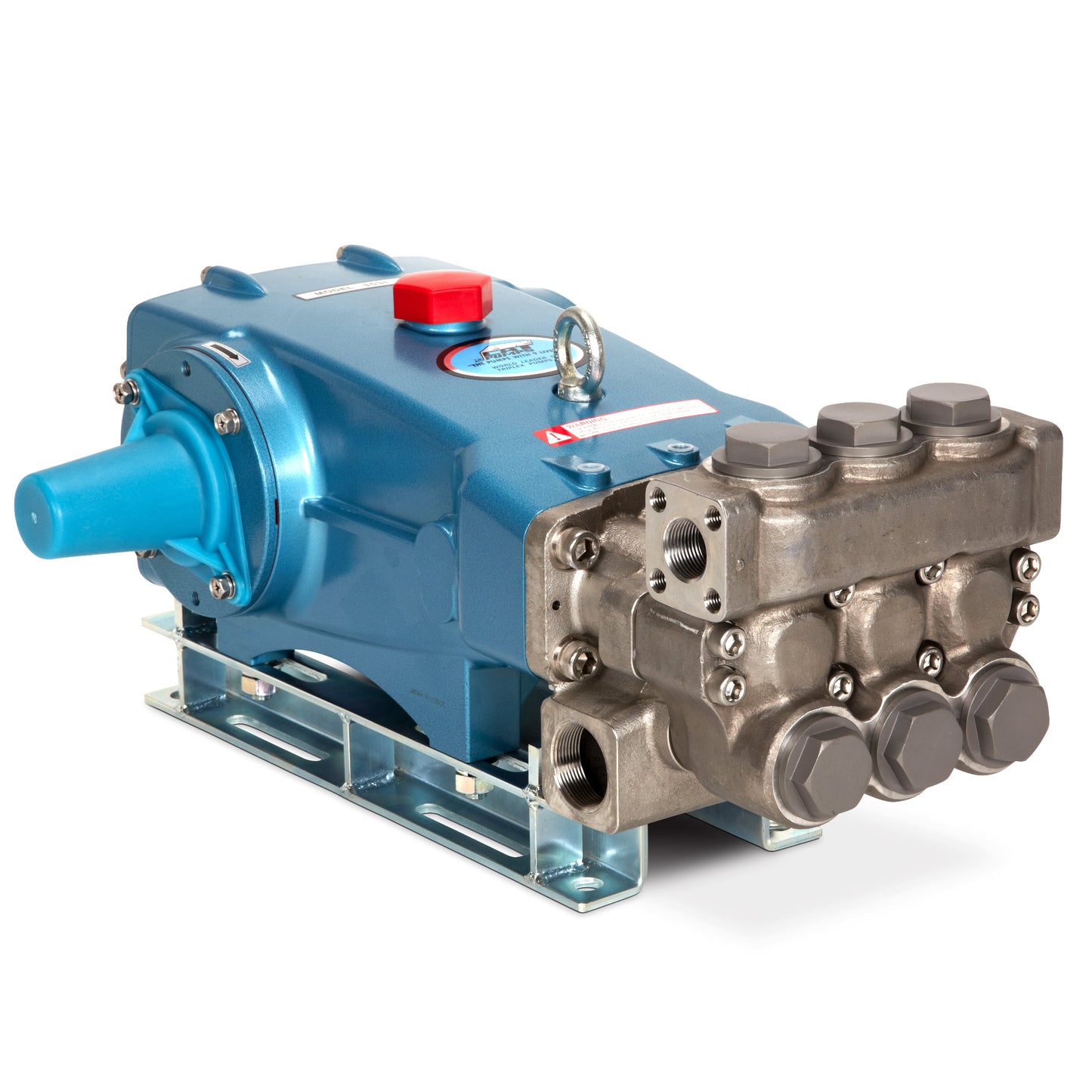

CAT PUMPS Model 3531DHS Triplex Plunger Pump - HS Series

Professional HS Series Triplex Plunger Pump

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a 316 stainless steel inlet manifold, duplex stainless steel discharge manifold, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Advanced connecting rod and plunger rod materials optimize drive-end operation for continuous-duty applications on this "HS" Series pump.

Technical Specifications

• Max Flow: 36 gpm / 136 lpm
• Max Pressure: 1200 PSI
• Inlet Port Size: 1 1/2" NPT(F)
• Discharge Port Size: 1" NPT(F)
• RPM: 800
• Drive Type(s): Belt, Flexible Coupling and Bellhousing
• Material: 316 Stainless Steel

Engineered for continuous-duty applications requiring superior reliability and performance in demanding industrial environments.

IMPORTANT ORDER INFORMATION:

This item is NOT CURRENTLY IN STOCK and will be built/sourced to order.

Shipping costs will be calculated and billed separately based on actual package dimensions and destination. We will send you an additional invoice for associated freight costs before shipment of item. Your order will be processed and shipped once both the item cost and shipping invoice have been paid in full.
