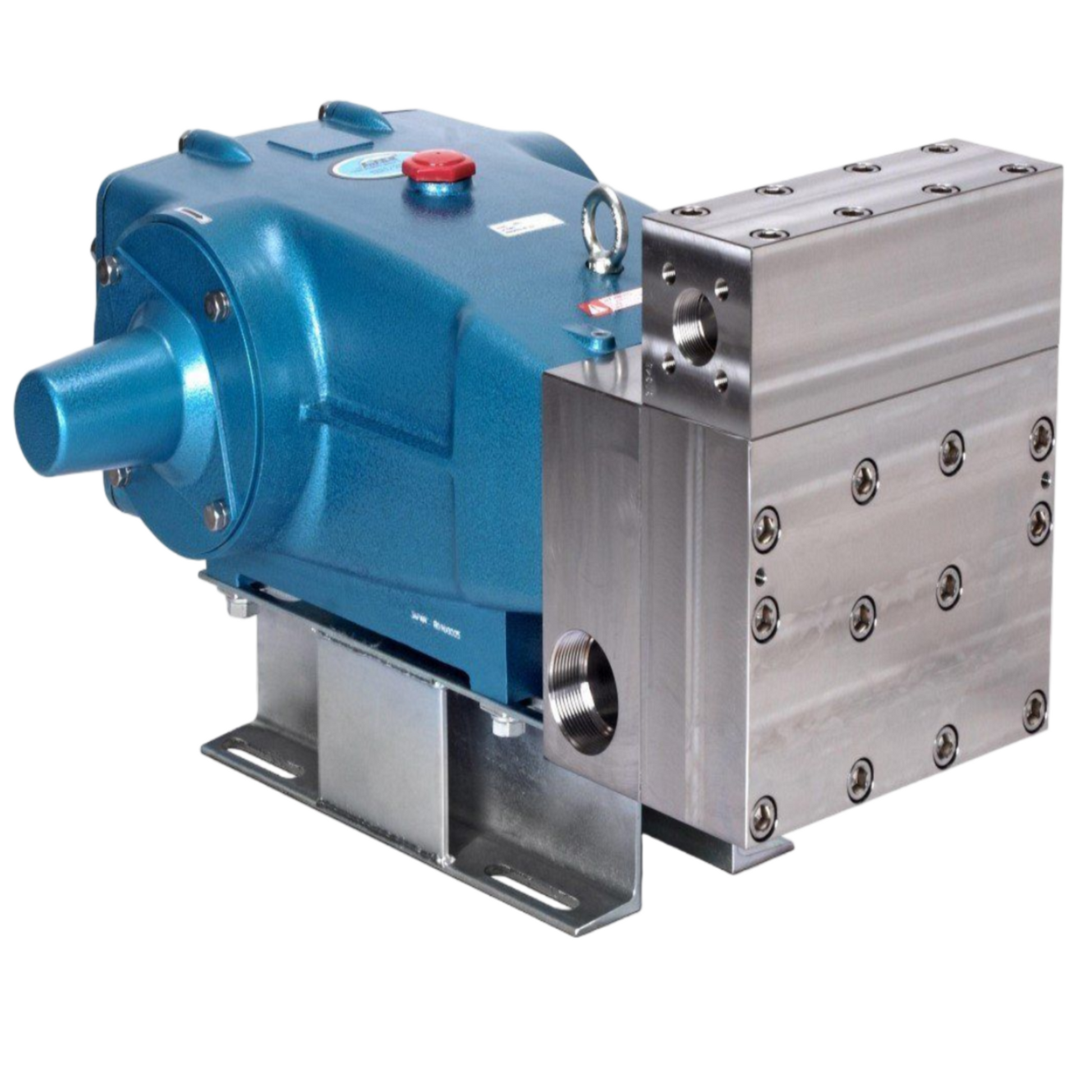

CAT Pump Model 6861 - 68 Frame Block-Style Triplex High Pressure Pump

This 68 Frame Block-Style triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.

Technical Specifications
Max Flow: 60 gpm / 227.1 lpm
Max Pressure: 1200 PSI
Inlet Port Size: 2" NPT(F)
Discharge Port Size: 1 1/4" NPT(F)
RPM: 520
Drive Type: Belt
Material: 316 Stainless Steel

Ideal for high-pressure applications requiring reliable, consistent flow rates. The 316 stainless steel construction ensures durability and corrosion resistance in demanding industrial environments.
