FCI Atlas+ APC/DTS Double-Pass Modular

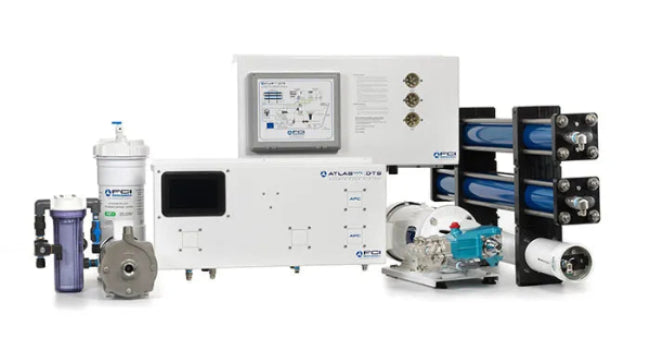

The Atlas+APC/DTS Double Pass System

The Atlas+APC/DTS Double Pass System components can be installed to fit your given space without sacrificing performance. It is controlled by an exclusive marine certified touch screen monitor, and is specified with NEMA 4X rated enclosures and valves, which are corrosion resistant, and protected against directed water intrusion.

Key Features:

• The Atlas+APC and DTS+ in one all-inclusive system
• 3-in-1 system saves up to 40% on cost of equipment, and 50% less on installation
• Fully automated: Seawater, Double-Pass, and Dockside
• Auto-adjustable to global feed water conditions
• Marine Certified 7″ Display and HMI Control System
• Exclusive NEMA 4X-rated enclosures and valves for safety and protection in harsh environments
• Noise-dampening 4-point Vibration Isolation Mounts

Typical Sea Water Conditions:

• Temperature: 77º F / 25º C
• TDS: 32,000 Seawater | 500 Municipal/DTS
• Pressure: 825 PSI Seawater | 125 PSI Municipal/DTS

Specifications:

• Production (GPD): 2,000 - 3,600
• Power (KW): 4.47 kW
• Voltage (VAC): 208-240 / 380 / 480

IMPORTANT ORDER INFORMATION:

This item is NOT CURRENTLY IN STOCK and will be built/sourced to order.

Shipping costs will be calculated and billed separately based on actual package dimensions and destination. We will send you an additional invoice for associated freight costs before shipment of item. Your order will be processed and shipped once both the item cost and shipping invoice have been paid in full.
